The Things Industries

Vibration Sensor

Regular price €150,00 €0,00 Unit price per
Tax included. Shipping calculated at checkout.

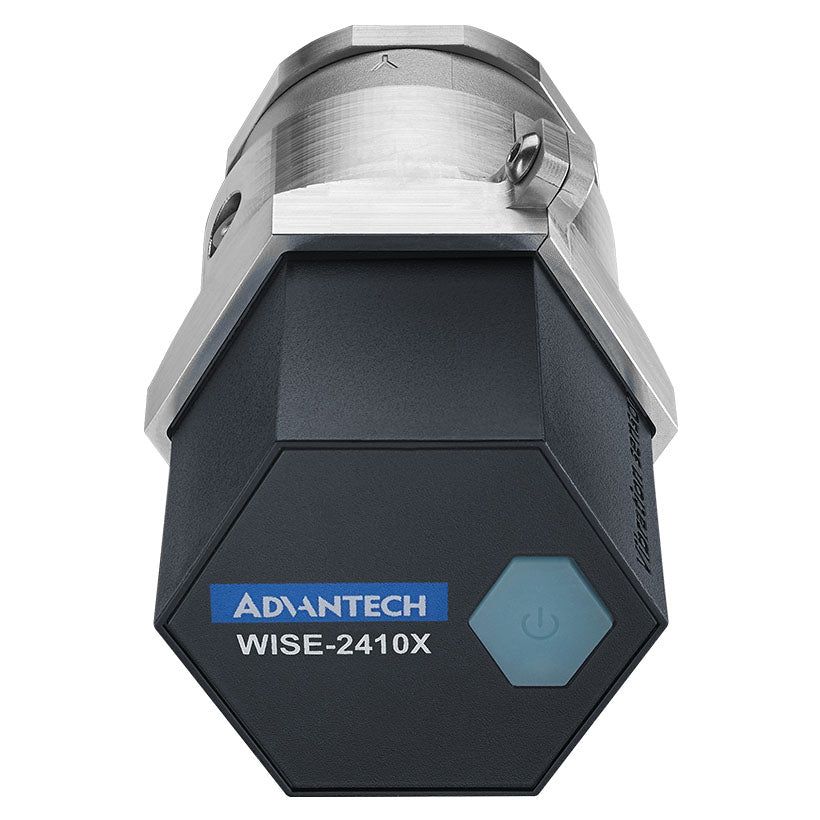

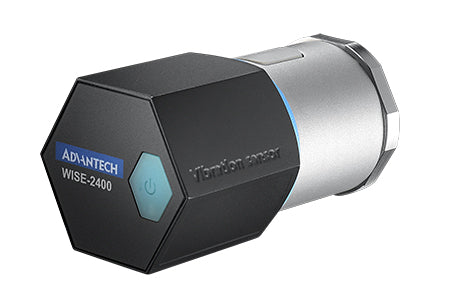

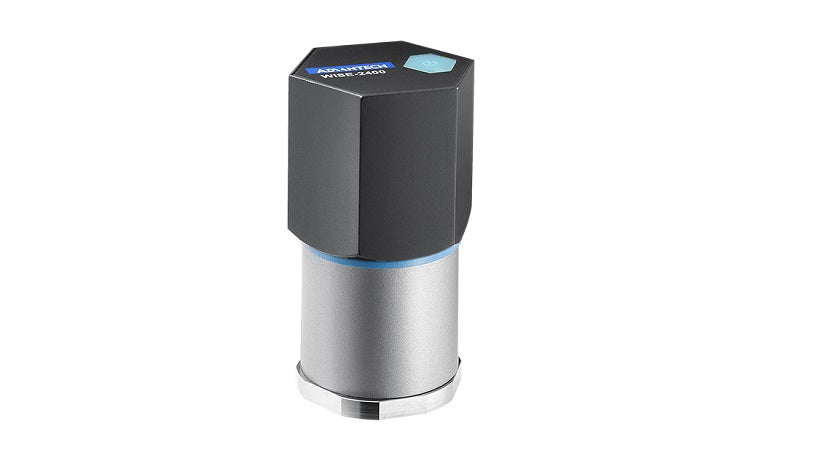

LoRaWAN Smart Vibration Sensor

  • LoRaWAN wireless connectivity
  • Built-in 3-axis accelerometer and temperature sensor
  • On-board computing. Directly sends VRMS, ARMS, Peak, Displacement, Kurtosis, Crest factor, Skewness and Standard Deviation values to applications
  • Support battery power supply, no wiring installation needed
  • Easy settings with user friendly interfaces on WISE Studio utility
  • ISO 10816-1 compliant
  • Support wide temperature -20 ~ 80 °C (Battery-powered)
  • IP66 enclosure design

Monitoring vibration and implementing preventive maintenance is crucial for equipment operation and maintenance. This end device can detect the vibration of equipment 24 hours a day. Also, it makes immediate diagnosis to evaluate machine vibration by measurements, without coding and algorithm implementation.



Datasheet - link

* The device also comes in a variant with ATEX certification. ]

** Manufacturer - Advantech
